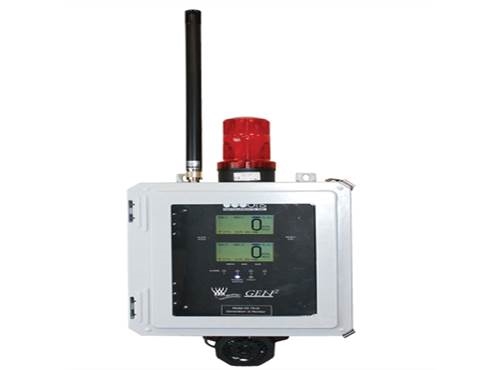

OI-7010-X-X-A4-32-X Hybrid Monitor

WireFree Radio Options

GEN II 900 MHz Radio

GEN II 2.4 GHz Radio

GEN I 900 MHz Radio

Networks

52 Networks (GEN II 900 MHz Radio)

78 Networks (GEN II 2.4 GHz Radio)

255 Addresses per Network

Protection

Power Electromagnetic Interference (EMI) Filter

4-20 mA Surge Suppression

RS-485 Surge Suppression

Display Screen

2 Graphical LCD Screens with 128x64 Resolution

Transflective (Sunlight Readable) with LED Backlight

Part Number Formula

01-7010-[Power]-[Radio]-A4-32-[Enclosure]

01-7010-X-X-A4-32

Relays

4 Dry-Contact Relays with 4 Amp Replaceable Fuses

Individually Set Full Scale, Normally Open or Normally Closed, Latching or Non-Latching, and Fault Terminal

Product Type

32 Channel Gas Monitor

Operating Voltage

12V to 35V DC or 120V AC

Current Draw

275 mA Maximum at 24 VDC

Power Supply

3.13A (75W), 85/264V AC to 24V DC (Optional)

Antenna Connection

External N-Female Radio Frequency (RF) Connector

Customizable Settings

Option to Disable Alarm Relays

Interface

5 Push-Buttons (MENU, ADO, SUB, SCAN/HOLD, RESET/ESC)

Tamb Temperature Range

-40°C to +70°C

WireFree (Digital), Wired (Analog) Input

Up to 32 Wireless Sensor Inputs, Up to 4 Can Be 4-20 mA Wired Analog Inputs

Digital Output

RS-485 Modbus

Product Compatibility

All Otis GEN I and GEN II WireFree Products and Any Wired 4-20 mA Sensors

Enclosure Material

NEMA 4X Fiberglass Enclosure with Clear Window (Available in Stainless-Steel)

Product Dimensions

10 in. L x 8 in. W x 6 in. H (Max. Dimensions with Attachments)

Total Weight

8.20 lbs.

Product Mounting

4 Mounting Feet, 6 in. W x 12-1/4 in. T (included), Maximum Mounting Bolt/Screw Size of 5/16 in. (8mm) Diameter

Hardware Warranty

1-Year, Limited
