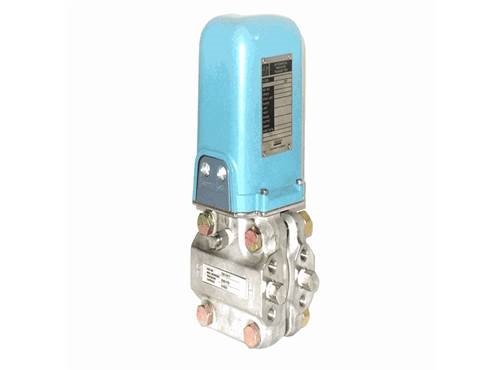

Foxboro 13A Pneumatic Transmitter

Accuracy:-

Includes Linearity, hysteresis, and repeatability

For Spans between 5 and 130 kPa, 20 and 525 inH2O, or 50 and 1300 mbar differential pressure (?P): ±0.5% of span

For Spans between 130 and 210 kPa, 525 and 850 inH2O, or 13

DeadBand:-

0.05% of span

Repeatability:-

0.1% of span

Hysteresis:-

0.12 kPa, 0.05 inH2O, or 0.12 mbar ?P; or 0.10% of span, whichever is greater

Approximate Mass:-

8.6 kg (19 lb)

Reproducibility:-

0.15% of span

Position Effect:-

The 13A Series may be mounted up to 90° from vertical and the zero shift may be corrected with the zero adjustment screw.

Span Limits:-

0-5 and 0-62 kPa (0-20 and 0-250 inH2O, 0-50 and 0-620 mbar or 0-500 and 0-6350 mmH2O or 0-0.5 and 0-6.35 mH2O) ?P

0-50 and 0-210 kPa (0-200 and 0-850 inH2O, 0-0.5 and 0-2.1 bar or 0-5.0 and 0-21.6 mH2O) ?P

Body Material:-

316 ss

Monel (13A4 only)

Nickel alloy (a) (13A5 only)

Process Connectors (b):-

Tapped for 1/4 NPT

Tapped for 1/2 NPT

Tapped for R 1/4

Tapped for R 1/2

Weld neck for 14 x 21 mm tube (1/2 in Schedule 80 pipe)

None. Body tapped for 1/4 NPT

Optional Suffix:-

Zero Elevation Kit

Zero Suppression Kit
