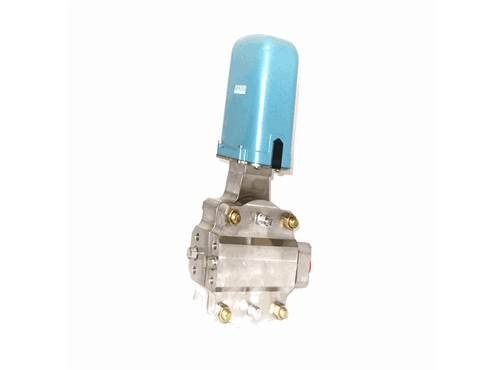

Foxboro 15A Pneumatic Differential Pressure Transmitter

The Foxboro® brand Models 15A pneumatic d/p Cell transmitters measure differential pressure and transmit a standard pneumatic signal to receivers which may be several hundred meters or yards away. The simple design of the top works and the field replaceable capsule makes servicing these transmitters exceptionally easy and economical. Interchangeability of most of the top works parts with other Foxboro pneumatic force balance transmitters provides further savings to the user by minimizing spare parts inventory.

Availability: In stock

Accuracy:-

±0.5% of span

DeadBand:-

0.05% of span

Repeatability:-

0.1% of span

Hysteresis:-

0.0025 kPa, 0.01 inH2O, or 0.025 mbar ?P; or 0.10% of span, whichever is greater

Approximate Mass:-

13.6 kg (30 lb)

Reproducibility:-

Includes effects of hysteresis, repeatability, dead band, and drift over a one-hour period 0.2% of span

Position Effect:-

The 15A Series must be operated with the capsule in the vertical plane.

Span Limits:-

0-5 and 0-25 inH2O or 0-1.3 and 0-6 kPa or 0-13 and 0-62 mbar or 0-125 and 0-635 mmH2O

Process Connectors (b):-

Tapped for 1/4 NPT

Tapped for 1/2 NPT

Tapped for R 1/4

Tapped for R 1/2

Weld neck for 14 x 21 mm tube (1/2 in Schedule 80 pipe)

None. Body tapped for 1/4 NPT

Body Material:-

316 ss

Optional Suffix:-

Zero Elevation Kit

Zero Suppression Kit

Model Number	Transmitter Type	Measurement Type	Pressure Range/Span	Brand	Category	Availability	RFQ
15AL1	AISI Type 316 Stainless Steel		0-5 (Min) And 0-25 (Max) Inches Water, 0-1.3 (Min) And 0-6 (Max) kPa, Or 0-13 (Min)And 0-60 (Max) mbar	Foxboro	Pneumatic Transmitters	Yes	RFQ
15ALS1	AISI Type 316 Stainless Steel		0-5 (Min) And 0-25 (Max) Inches Water, 0-1.3 (Min) And 0-6 (Max) kPa, Or 0-13 (Min)And 0-60 (Max) mbar	Foxboro	Pneumatic Transmitters	Yes	RFQ
15ALS1CERTE	AISI Type 316 Stainless Steel		0-5 (Min) And 0-25 (Max) Inches Water, 0-1.3 (Min) And 0-6 (Max) kPa, Or 0-13 (Min)And 0-60 (Max) mbar	Foxboro	Pneumatic Transmitters	Yes	RFQ
15ALS2	AISI Type 316 Stainless Steel		0-5 (Min) And 0-25 (Max) Inches Water, 0-1.3 (Min) And 0-6 (Max) kPa, Or 0-13 (Min)And 0-60 (Max) mbar	Foxboro	Pneumatic Transmitters	Yes	RFQ
3051SMV515A4R7A11A1J	Scalable MultiVariable Transmitter	Differential Pressure, Static Pressure, and Temperature	-3 to 3 inH2O Not Applicable 0 to 5 psia	Rosemount	Multivariable Transmitters	Yes	RFQ
