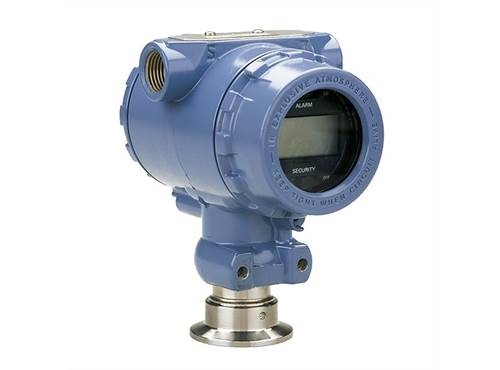

Designed for hygienic applications, the Rosemount 2090F Hygienic Pressure Transmitter is specifically engineered for the pharmaceutical and food and beverage industries. Built with industry standard process connections, this device connects to sanitary fittings without special mounting hardware. In addition, this hygienic pressure transmitter conforms to 3-A® Sanitary Standards, allowing you to meet tough process requirements.
Specification
Rosemount 2090F Hygienic Pressure Transmitter
Standard Specification
Tri Clamp process connection designed for standard sanitary fittings
Conforms to 3-A Sanitary Standards for hygienic application compliance
Utilizes single-filled sensor system for reliability and accuracy
Features CIP/SIP service for process temperatures of up to 284 °F (140 °C)
Fully configurable LCD displays process variable, percent of range and diagnostic messages
Warranty
Up to 5-year limited warranty
Rangedown
Up to 20:1
Communication Protocol
4-20 mA HART®
Measurement Range
Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute
Process Wetted Material
316L SST
Diagnostics
Basic Diagnostics
Certifications/Approvals
3-A Sanitary Standards, hazardous location, see full specs for complete list of certifications
Process Wetted Material
316L SST
Diagnostics
Basic Diagnostics
Certifications/Approvals
3-A Sanitary Standards, hazardous location, see full specs for complete list of certifications
Resources
Technical Data-Sheet
Rosemount 2090F Hygienic Pressure Transmitterproduct_data_sheet_rosemount_2090f_sanitary_pressure_transmitter_en_73238.pdf
Technical Data-Sheet
Rosemount 2090F Hygienic Pressure Transmitterproduct_data_sheet_rosemount_2090f_sanitary_pressure_transmitter_en_73238.pdf
