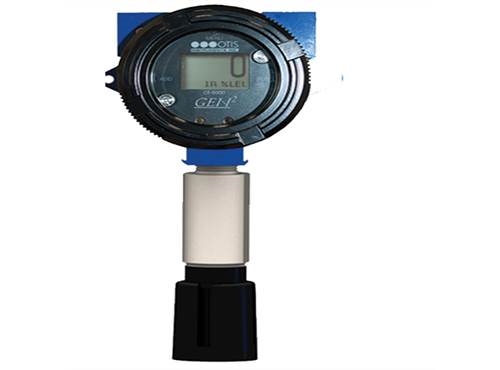

OI-6000-IR-152-X-X-O Sensor Assembly

Remote Mount Control Unit (Optional Feature)

01-6800 Remote Control Unit

Allows Full Operational Control of the Remotely Connected 01-6000-IR-152-X-X-0

Available in Explosion Proof and Non-Explosion Proof Enclosure Option

Ability to Include an Additional 2 Dry-Contact Relays

Ability to Add a GEN II 900 MHz or 2.4 GHz Radio for WireFree Signal Reporting to other Otis Monitors

Protection

Power Eletromagnetic Interference (EMI) Filter

4-20 mA Surge Suppression

RS-485 Surge Suppression

Operating Voltage

Wired Powered (3-Wire) 12 to 35 VDC

Hazardous Location Certifications and Approvals

Class I, Division 1, Groups C & D

Ex db ia IIB T4 Gb

ANSI/ISA 12.13.01-2013

Wired (Analog) Output

4-20 mA (3-Wire)

Fault Terminal

Optional 2 Dry-Contact Relays with Replaceable 4 Amp Fuses

Display Screen

102x64 Resolution Graphical LCD Screen

Transflective (Sunlight Readable) with White LED Backlight

Current Draw

1 Amp Maximum

Sensor Type

Infrared Sensor Element

Interface

3 Push-Buttons (MENU, ADD and SUB)

3 Magnetic, Non-Intrusive Switches for Calibration

Customizable Settings

2 Individually-Configurable Alarm LED/Relay Set-Points

Tamb Temperature Range

-40°C to +54°C

Output (Digital)

RS-485 Modbus

Product Dimensions

5.5 in. T x 6 in. W x 7 in. H (8 in. W x 17 in. H Max. with Attachments)

Total Weight

5.75 lbs.

Hardware Warranty

1-Year, Limited

Sensor Element Warranty

24 Months (Subject to Otis Verification of Element Condition)

Part Number Formula

OI-6000-IR--152-x-x--0 (No Relays Installed)

OI-6000-IR--152-x-R--0 (2 Dry-Contact Relays Installed)
