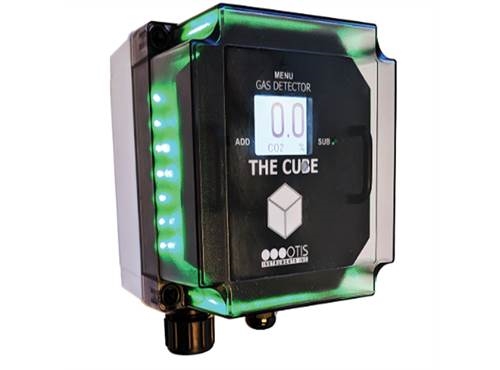

The Otis Instruments OI-6000 Series Ambient Air Toxic Gas Detector is a versatile assembly that uses an electrochemical, infrared or PID sensor element to detect a variety of gases. Wired powered (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
Specification
OI-6000-X-X-X-X-X-C Sensor Assembly
Sensor Type
Electrochemical, Infrared, Photoionization Detector
Power Voltage
Wired Powered (2-Wire) 12 to 35 VDC (Optional AC Power Supply)
Power Draw
2 Watts Maximum
Protection
- Power Electromagnetic Interference (EMI) Filter
- 4-20 mA Surge Suppression
- RS-485 Surge Suppression
Display Screen
- 102x64 Resolution Graphical LCD Screen
- Transflective (Sunlight Readable) with White LED Backlight
Interface
- 3 Push-Buttons (MENU, ADD and SUB)
- 3 Magnetic Non-Intrusive Switches for Calibration (MENU, ADD and SUB)
Customizable Settings
- 2 Individually-Configurable Alarm LED Set-Points
Tamb Temperature Range
-40°C to +70°C
Wired (Analog) Output
4-20 mA (3-Wire) - Fault Terminal
(Digital) Output
- RS-485 Modbus
- Optional GEN I 900 MHz or GEN II 2.4 GHz Radio WireFree Output
Product Dimensions
5" L x 5" W x 5" H
Total Weight
5 lbs.
Hardware Warranty
Limited one year
Sensor Element Warranty
Varies with Gas Type
Enclosure Material
1, us and 274 6 ady artonate Enclosure with Clear Window - IP 66, UL 508 and UL 746C (f1) Rated
Product Number Formula
0I-6000-[Sensor Type)-[Gas)-[Radio Option]-[Relay/Light Option]-[Power Supply)-C
